Sheet Metal Machines
Home > Products > Sheet Metal Machines

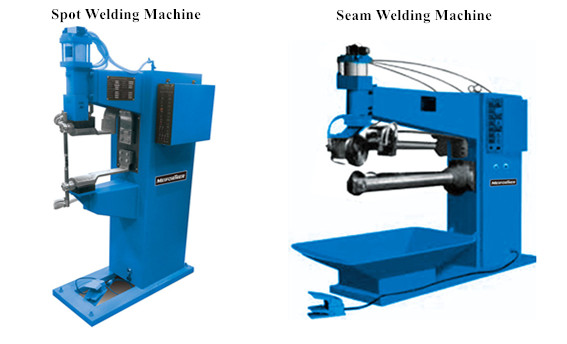

Spot & Seam Welding Machine
Optimal use high-quality steel body design of the mechanical structure of the overall appearance and good rigidity.
Integration of the electrode body pressure, gas is short, compact, faster response, installation and maintenance more convenient.Suitable for low carbon steel, stainless steel and other materials, pots, barrels, pipes and welded thin-walled containers.
With vertical and horizontal welding in two forms,to adape to a variety of workpiece welding.
Spot Welding Machine
|
Model |
|
DN-25 |
DN-40 |
DN-60 |
D(T)N-80 |
D(T)N-100 |
D(T)N-150 |
D(T)N-200 |
|
Capacity |
KVA |
25 |
40 |
63 |
80 |
100 |
|
200 |
|
Max input |
KVA |
45 |
73 |
122 |
166 |
222 |
296 |
386 |
|
Size of arm |
mm |
220*500 |
220*500 |
220*500 |
220*500 |
220*500 |
220*500 |
220*500 |
|
Electrode stroke |
mm |
60 |
30/60 |
30/60 |
30/60 |
30/60 |
40/100 |
40/100 |
|
Wight |
kg |
220 |
280 |
340 |
380 |
400 |
750 |
790 |
|
Electrode |
mm |
13 |
16 |
16 |
16 |
16 |
20 |
20 |
|
Electrode arm |
mm |
50x50 |
60x200 |
60x200 |
60x200 |
60x200 |
80x240 |
80x240 |
|
Welding station |
mm |
/ |
110*130 |
110*130 |
120*130 |
120*130 |
150*160 |
150*160 |
|
Welding capacity |
|
2.5+2.5 |
3.0+3.0 |
3.5+3.5 |
4.0+4.0 |
4.5+4.5 |
5.0+5.0 |
6.0+6.0 |
Seam Welding Machine
Model
FN-25
FN-40
FN-80
FN-150
Rated Capacity
KVA
25
40
80
150
Electrode stroke
mm
50
50
60
60
Welding Speed
0.6-3.5
0.6-3.5
0.6-3.5
0.6-3.5
Welding capacity
mm
0.4+0.4
0.6+0.6
1.0+1.0
1.2+1.2
Motor Power
W
120
120
220
370
Water
L/min
15
20
20
30
Weight
kg
280
350
500
800
